Securing the Management Plane

Secure Planes

Physical Security

  • One of the most important things to consider
  • Configurations to secure device be undone if anyone has access to device
  • Boot into ROMmon
  • Could just as easily power off device
    • Cut cables

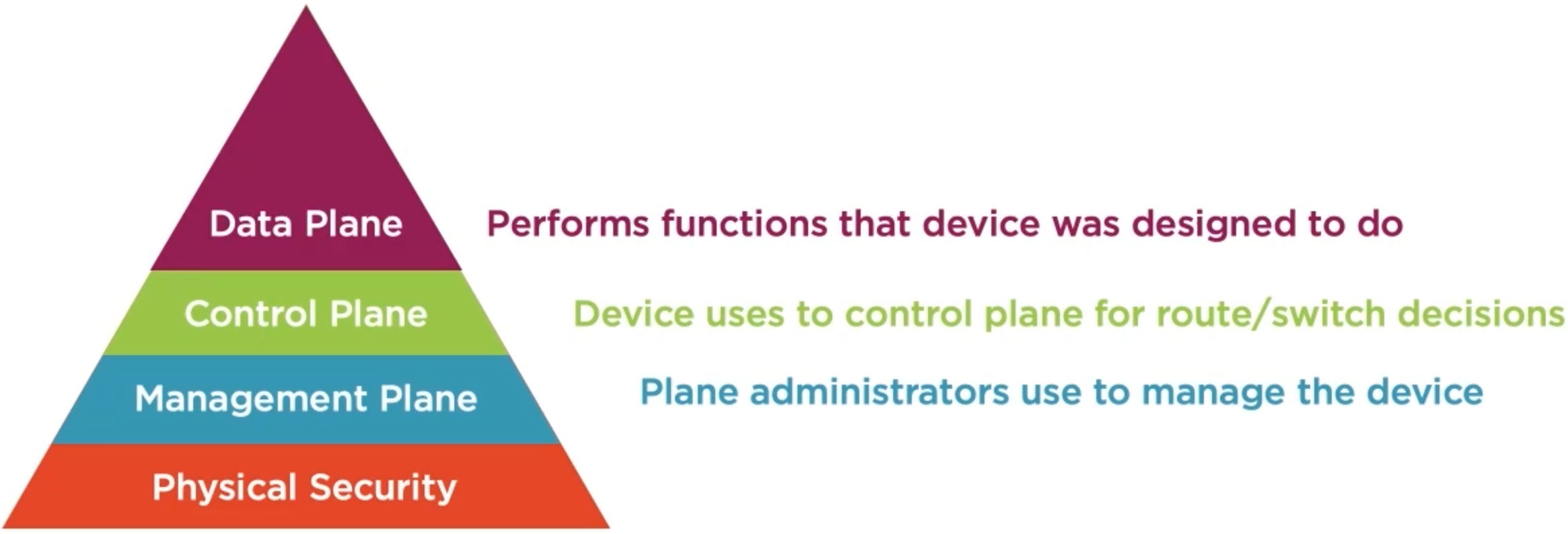

Network Device Planes


Telnet, HTTP, SSH, and HTTPs

How Do You Manage a Device?

  • Console
  • Telnet
  • HTTP
  • Without encryption, data can be compromised

AAA

TACACS+ & RADIUS are used for AAA

Managing Administrators

  • Create users, passwords, and permissions on each device

    • Doesn’t scale

  • AAA

    Authentication, Authorization & Accounting

AAA Process

  • Provide security guard with identification (Guard authenticates you)
  • Verify that the proper forms and approvals have been met (Guard authorizes you)
  • Logbook and camera track movements and activities (Accounting record)

RADIUS & TACACS+

RADIUS

  • Remote Authentication Dial-in User Service
  • Users would dial office modem
  • Radius used for authentication
  • UDP Ports 1812 & 1813
  • Password field is encrypted

Authentication Protocols:

  • Challenge Handshake Authentication Protocol (CHAP)
  • Password Authentication Protocol (PAP)
  • Microsoft CHAP (MS-CHAP)
  • Extensible Authentication Protocol (EAP)

RADIUS Messages:

  • Access-Accept
  • Access-Reject
  • Access-Challenge
  • Accounting-Request
  • Accounting-Response

TACACS+

  • Terminal Access Controller Access Control System
  • Does not include authorization in authentication request
  • Start message
  • Reply asking for username
  • Continue with username
  • Reply asking for password
  • Continue with password
  • Reply with authentication determination
  • TCP port 49
  • Entire payload is encrypted

Authorization Messages:

  • AAA Client starts with a new conversation for authentication
  • Occurs each time user tries to do anything
  • Send a request message
  • Server Responds with:
    • FAIL
    • PASS_ADD
    • PASS_REPL
    • FOLLOW
    • ERROR

Accounting Messages:

  • Request
  • Response

When Do You Use TACACS+?

  • Use to authorize IT employees
    • Have different command sets per different IT levels
    • Each command set would verify with AAA server that the user is authorized
    • Continue checking authorization for each command

When Do You Use RADIUS?

  • User access to the network
  • 802.1X
  • Change of Authorization (CoA)
  • Cisco ISE

SNMP

SNMP Benefits

  • Audit trail
  • Immediately alerted of issues
  • Events are stored in MIB
  • Changes can be made by SNMP server

SNMPv1 & SNMPv2c

  • Community strings
    • all info is in plain text
  • At a minimum change default community
    • Too many orgs leave the default
    • Easy attack

SNMPv3 Configuration

  • noAuthnoPriv
    • Similar to SNMPv1 and SNMPv2c - not secure
  • AuthNoPriv
    • Username and HMAC password
  • AuthPriv
    • Username, HMAC password, & encryption - most secure
  • SNMP users are tied to SNMP groups
  • SNMP groups can be restricted to only see certain info from MIB

Additional Protocol Security

Securely Transferring Files

  • Secure File Transfer Protocol (SFTP)
    • Secure version of FTP
    • Uses SSH framework to provide security
  • Requires secure algorithms!
  • Secure Copy Protocol (SCP)
    • Also uses SSH to secure traffic
    • Also relies on secure algorithms

Syslog

  • Logs created for events
  • SIEM correlates logs and finds anomalies
  • Syslog messages aren’t secure
  • Theres now Secure Syslog
  • Using TLS

Network Time Protocol

  • Proper time allows logs and SNMP messages to be correlated
  • Some industries require precision time in orter to function
  • Not traditionally secured - easily attacked
  • DoS attacks & disrupting business activities
  • Use NTP authentication

DNS

  • Registrar hijacking
    • Attacker hacks into organizations DNS account
  • DNS Cache Poisoning
    • Attacker sends false DNS records to DNS server
  • Can point DNS records to malicious server to cause DoS or gain data

Cisco Discovery Protocol

  • Learn which devices are connected
  • IP Address, device model, VLANs, etc.
  • Info can be used by attacker
    • Reconnaissance
  • Disable CDP on untrusted interfaces

Management Plane ACLs

  • Controls which IPs and protocols access management plane
  • Permit and deny traffic based on srs/dst IPs and ports
  • Deny insecure protocols
  • Allow ssh and https from management IPs
  • Permit mgmt. protocols to/from management servers
  • Apply ACL to mgmt. plane
